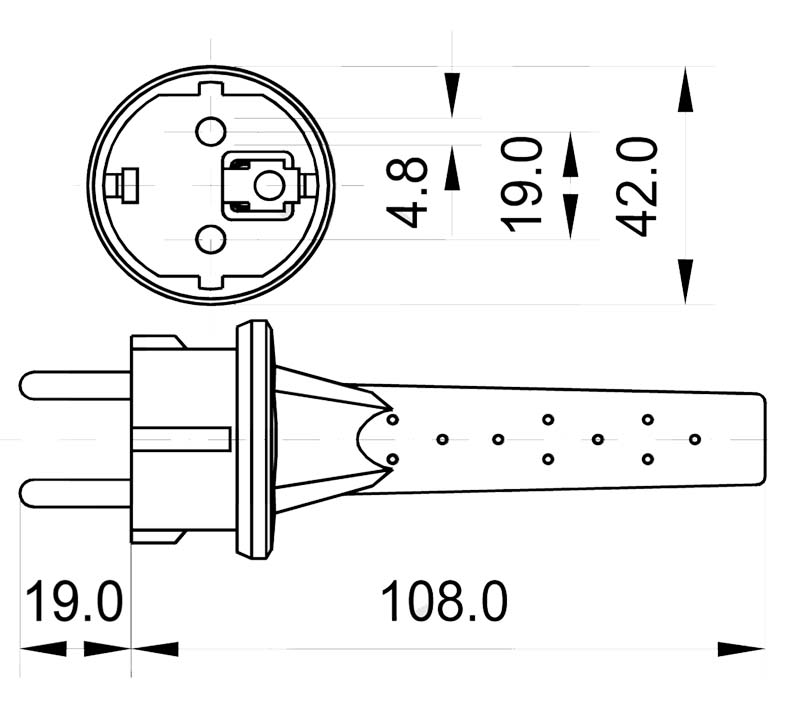

Plug Type E and Type F
2-pole plug with dual earthing-contacts
DIN VDE 0620-1:2005-4 DIN VDE 0620-1 : 2010-02 / standard sheet DIN 49441 R2 + DIN 49441-2-AR2
IEC 60 884-1:2002 (Third edition)
CEE 7, standard sheet VII
16A, 250V~
IP 44 when connected
| Cable Type | Cross-Section |
|---|---|
| H05VV-F | 3G1.0 - 3G2.5 |
| H05RR-F | 3G1.5 - 3G2.5 |
| H05RN-F | 3G1.0 |
| H07RN-F | 3G1.0 -3G2.5 |
| H05BQ-F | 3G1.0 |
| H07BQ-F | 3G1.0 - 3G2.5 |
| H07RN8-F | 3G1.0 - 3G2.5 |
Further cable types and cross sections on request!
A robust construction site safety plug for the power supply of heavy electric hand tools, welding equipment or charging cables.
